ONU OLT 1GE+1FE+VOIP+2.4G WIFI ONU BT-221ER ONU PORT RF ONU XPON
ANATEL
Product Description:

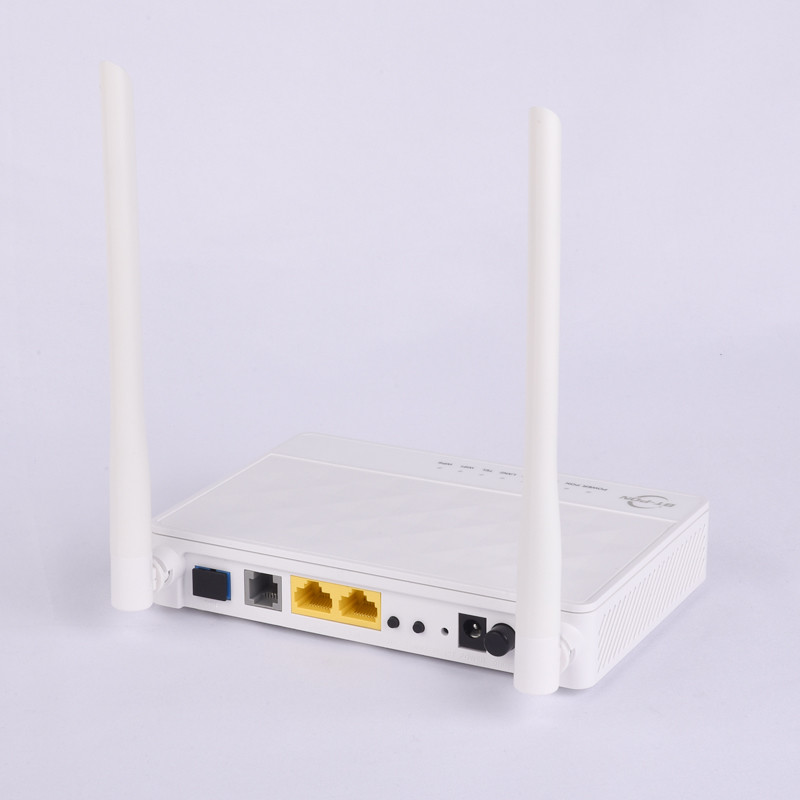

BT-221XR model ONU is a user terminal device independently
developed by BTPT in line with such industrial background.The
device has built-in two-layer switching function and three-layer
routing function. With compact structure and small appearance.
Features:
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth
Control, Spanning Tree, etc
Support PPPoE/ Static IP/ DHCP
Support IPv4, IPv6 and IPv4/IPv6
Support firewall level Settings, support based on URL/MAC/ IP/
address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/
snooping
Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and
maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support
Multiple WAN, Route/Bridge mode, etc
Qos supports PQ, WRR, and CAR queue scheduling
Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna,
support multiple SSID Settings
Product Parameter:
| Hardware Specifications |
| Size(L*W*H) | 155mm (L) *113mm (W) *28mm (H) |
| Optical signal access | 1*GPON/EPON |
| User interface | 1GE+1FE+VOIP+2.4G WLAN |
| Indicator light | POWER,PON,LOS,LAN1,LAN2,TEL,WIFI,WPS |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 192g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface |
| Module type | Class B+ SC/UPC |
| Working wavelength | up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -28dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
| Ethernet interface |
| Interface type | 2*RJ45 |
| Interface parameters | 1*10/100/1000Mbps and 1*10/100Mbps |
| Wireless |
| Working mode | IEEE 802.11 b/g/n |
| Antenna pattern | External 2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz |
| Interface rate | Maximum rate 300Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| POTS Interface |
| Interface type | 1* RJ11 |
| Voice agreement | SIP |
| Codecs | G.711/G.723/G.726/G.729 |
| Integrated circuit protocol | Gr-909 protocol is applicable |
