SINGLE PORT ONT gepon onu COMPATIBLE OTHER OLT 1GE BOSA FTTH EPON
ONU
Product Description:
PON is a mature optical fiber access network technology, which
integrates the advantages of low cost, high bandwidth, strong
expansibility and other advantages. It adopts the passive spectral
network and point-to-multipoint structure, which changes the
problems existing in the active optical network such as many fault
points, difficult maintenance and high operating costs.

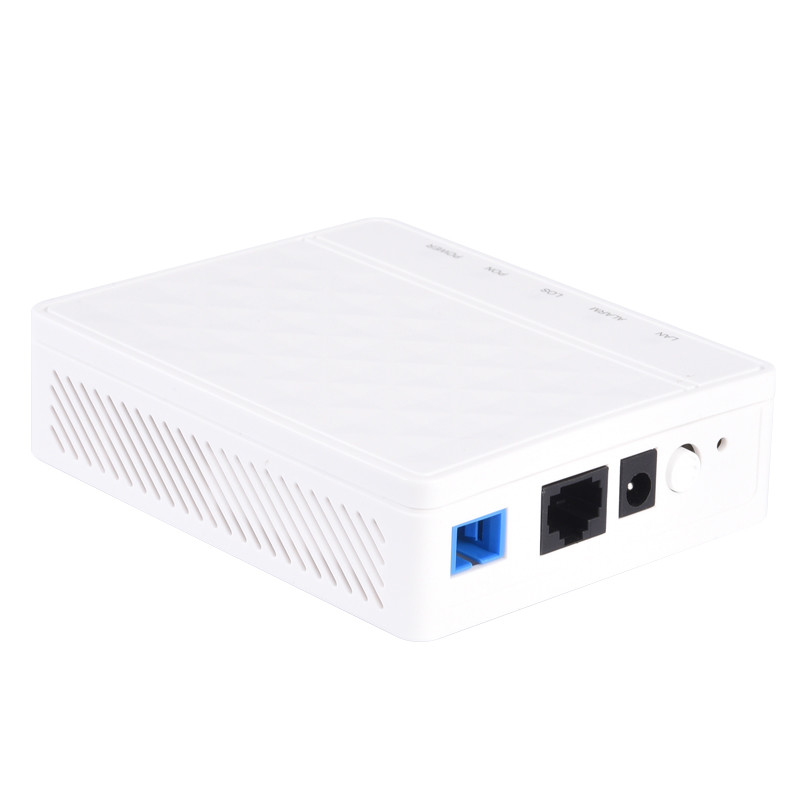

BT-201ER model ONU is a user terminal device independently
developed by BTPT in line with such industrial background.The
device has built-in two-layer switching function . With compact
structure and small appearance, it is a kind of FTTH EPON optical
network unit with high performance and low power consumption, which
is very suitable for the application requirements of various data
services in FTTH networking scenarios of various operators.
Features:
- Compliant with IEEE 802.3ah specification and OAM protocol
- Integrate OMCI remote configuration and maintenance
- Supports the WEB configuration function
- Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route
mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth
Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Support firewall level Settings, support based on URL/MAC/ IP/
address frame filtering
- Support multicast IGMP v2 snooping,
- Supports the AES-128 algorithm for data encryption of downlink data
Product Parameter:
| Hardware Specifications |
| Size(L*W*H) | 110mm (L) ×89mm (W) ×29mm (H) |
| Optical signal access | 1*EPON |
| User interface | 1GE |

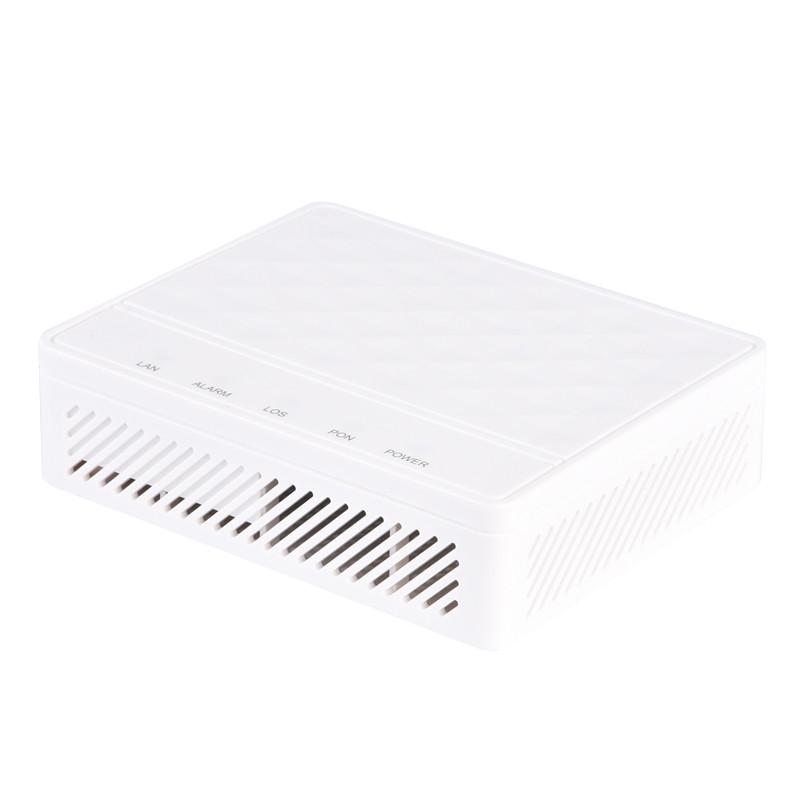

| Indicator light | POWER/PON/LOS/LAN |
| Button | Power switch Button, Reset Button |
| Weight | 100g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,0.5A |
| Power consumption | <6w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface |
| Module type | EPON SC/UPC |
| Working wavelength | up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1.244Gbps；downlink 1.244Gbps |
| Ethernet interface |
| Interface type | RJ45 |
| Interface parameters | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces |
FAQ:
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next
order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special
offer and technical support from them. Each model has S/N number
and we will send you the S/N list to you after shipping .You can
confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if
you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make
proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship
forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the
custom.
5.How about the shipping?
For small orders, we will send the goods by International Express
like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean
transportation, it takes one month to arrive. if urgnet, you can
select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after-sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
