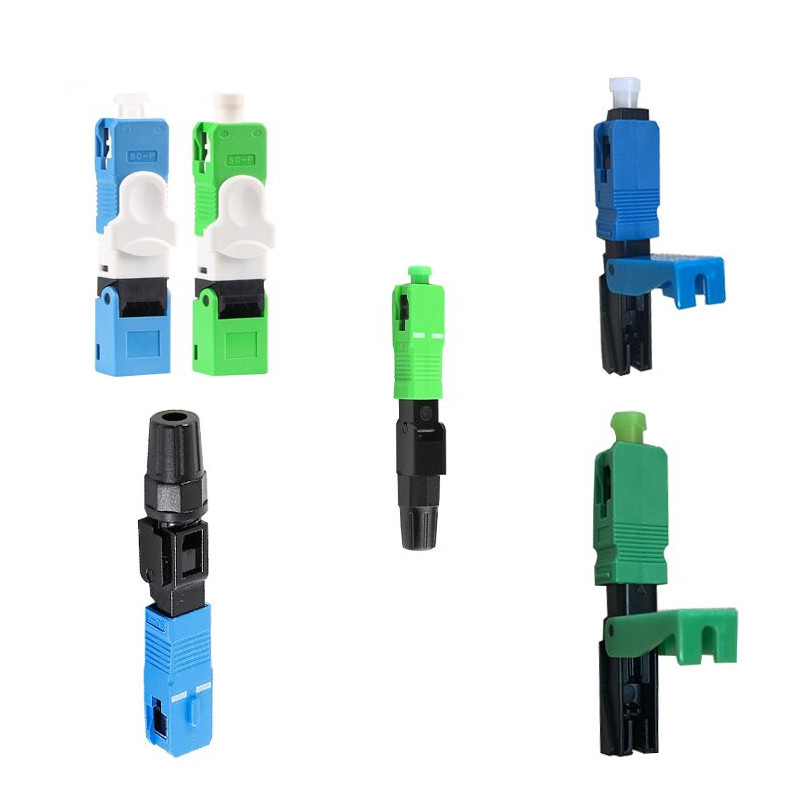

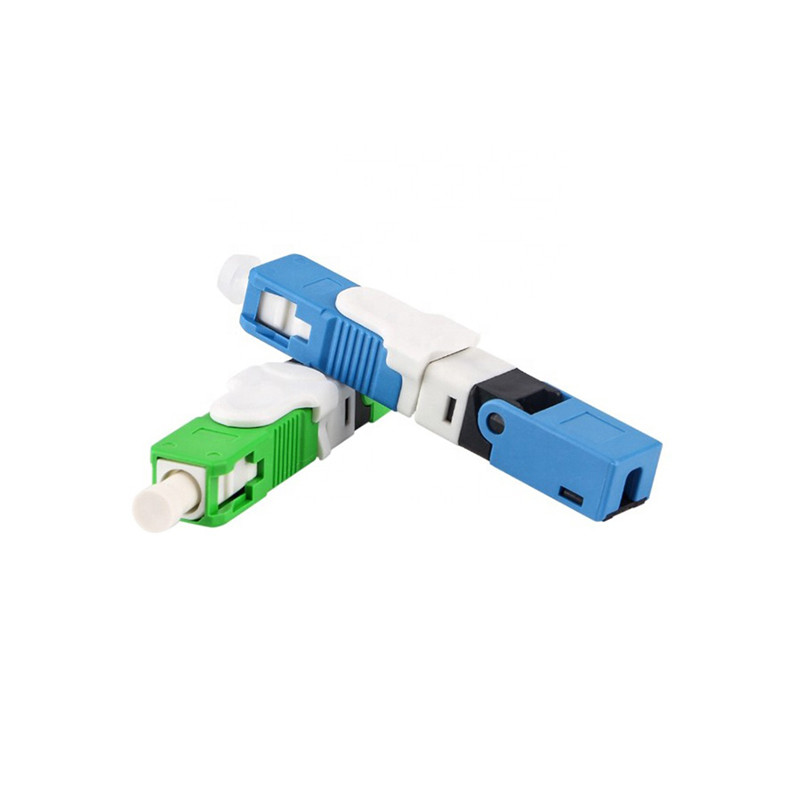

FTTH New Optical SC/UPC Hose Quick Fast Connector Apply Networks
Field Assembled Fiber Optical
Product Description:
The fast connector is becoming increasingly popular in single mode
fiber optic telecom and analog CATV, field deployed links. The high
precision, ceramic ferrule construction is optimal for aligning
single9mode optical fibers. The connectors’ outer square profile
combined with its push pull coupling mechanism, allow for greater
connector packaging density in instruments and patch panels. The
keyed outer body prevents rotational sensitivity and fiber endface
damage. Multimode versions of this connector are also available.
Optical fast connector takes use of the latest generation of Rapid
Ready-Terminal technology.
Features:
- Factory-installed fiber stub
- No epoxy or polishing required
- Quick and easy fiber termination in the field 4.Eliminates cable
excess length and pigtail splicestorage
- Eliminates cable excess length and pigtail splicestorage
- Cost effective
- Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom
cable
Product Parameter:
| Parameter | SM(9/125), MM(50/125, 62.5/125) |
| Fiber cable type | 3.0x2.1mm flat, 2.0mm, 3.0mm round Drop Cable |
| Insertion Loss | ≤ 0.3dB(pc), ≤ 0.2dB(APC) |
| Return Loss | ≥ 50dB(PC), ≥ 55dB(APC) |
| Fastening Strength of Bare Fiber | ≥ 5N |
| Tighten Strength of Coating | ≥ 10N |
| Tensile Strength Test | ≥ 30N |
| Tensile strength (20 N) | IL≤ 0.2dB |
| Operation Time | ≤ 90 seconds |
| Success Rate | ≥ 98% |
| Humidity (+25+65 93 R.H.100 hours) | ≤ 0.2dB |
| Mechanical Durability (500 times) | IL ≤ 0.3dB |
| Drop Test (4meters concrete floor, once each direction, three times
in total) | IL ≤ 0.3dB |
| Reused Times | Above 5 times |
| Operating Temperature | -40° C~70° C |
| Storage Temperature | -40° C ~ +85° C(Circular Temperature: sustain 100 hours≤0.2dB) |
FAQ:
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next
order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special
offer and technical support from them. Each model has S/N number
and we will send you the S/N list to you after shipping .You can
confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if
you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make
proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship
forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the
custom.
5.How about the shipping?
For small orders, we will send the goods by International Express
like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays
to arrive.If big quantity we will ship by Ocean transportation, it
takes one month to arrive. if urgnet, you can select shipping by
Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after-sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
