Cleavers Fiber cleaver Cable Cutting Knife FTTT Fiber Optic Knife
Tools cutter
Product Description:
Model: BT-PON
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating),10 - 16mm
(Single Fiber - 0.9mm Coating),Single Core (φ0.25 & 0.9mm) –
12-core Ribbon Fiber – 2.5 Covered Wire

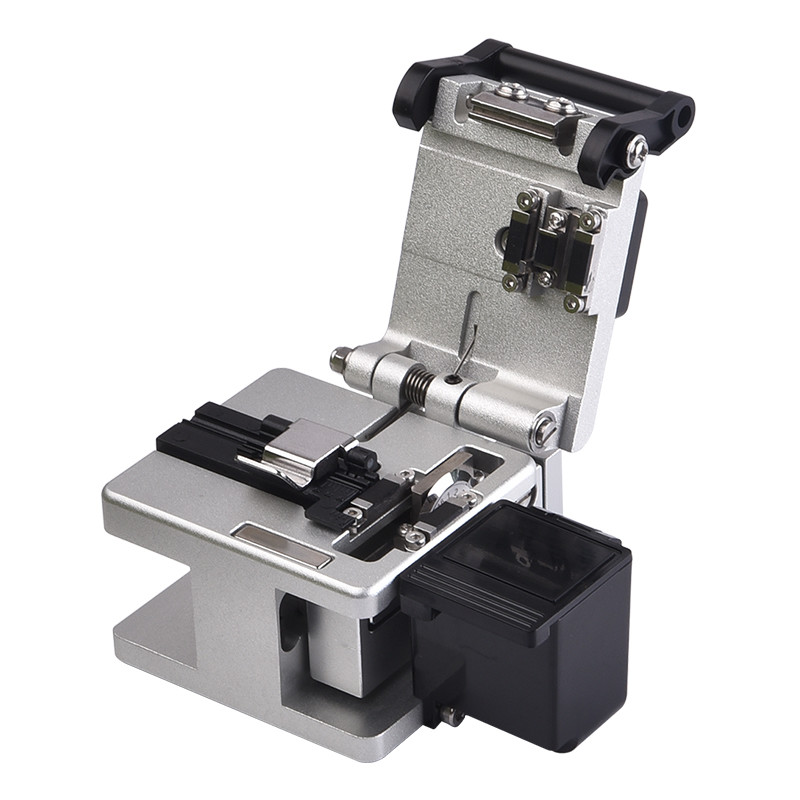

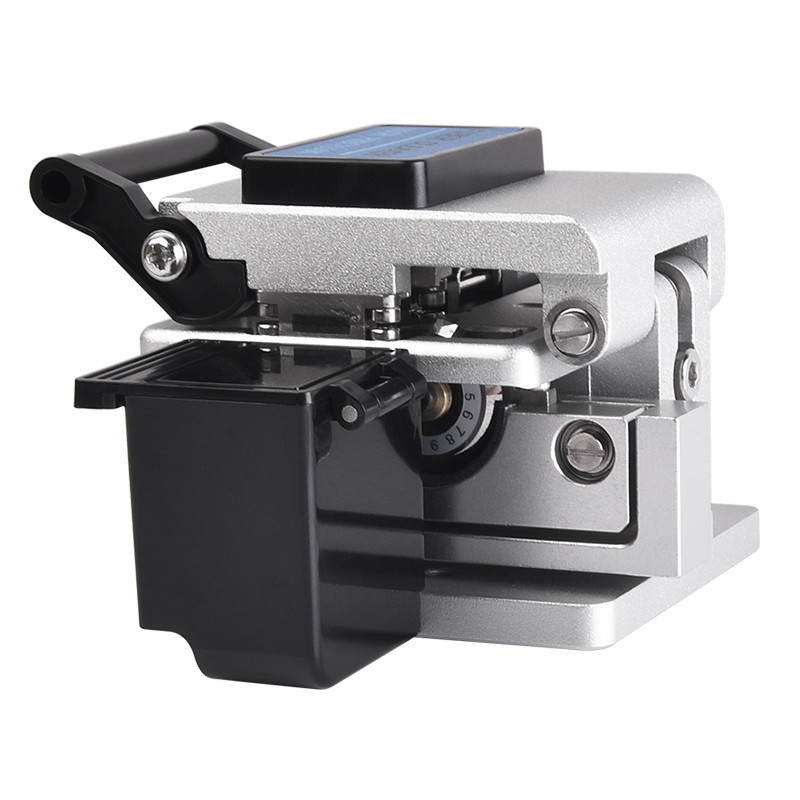

This high precision fiber cleaver is the newest model fiber cleaver
which has the advantages of cost-effective, good cleave angle,
smooth cross section , easy to operate, convenient to use .
This is a perfect tool kits in the fiber optic Installation and
maintenance.
Features:
- Industry’s 1st and Only 1 to 12-Fiber Ribbon Cleaver with Automatic
Blade Rotation
- Ideal Cleaver for High Volume Precision Cleaving Applications in
Any Environment
- Precision Blade Features 24 Blade Positions with 2,000 Cleaves per
Position
- Compatible with All Sumitomo Electric Fusion Splicers
- User Selectable Blade Rotation Options Include: Automatic Blade
Rotation with Each Fiber Cleave,No Rotation, and Single Position
Advance
- 48,000 Consecutive Fiber Cleaves Without User Manually Rotating the
Blade or Adjusting Height
- Single Fiber, FC-6RS Model Available With or Without Scrap
Collector
- RoHS Compliant
Product Parameter:
| Model | BT-PON |
| Bare fiber diameter | 125um |
| Applicable Fiber | 250μm fiber cable, 900μm fiber cable, 12-fibre ribbon, and fiber
jumper cable |
| Cleaving length | 18mm |
| Size | 71.3*67.2*51 (mm) |
| Weight | 230g |
FAQ:
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next
order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special
offer and technical support from them. Each model has S/N number
and we will send you the S/N list to you after shipping .You can
confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if
you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make
proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship
forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the
custom.
5.How about the shipping?
For small orders, we will send the goods by International Express
like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays
to arrive.If big quantity we will ship by Ocean transportation, it
takes one month to arrive. if urgnet, you can select shipping by
Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after-sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
