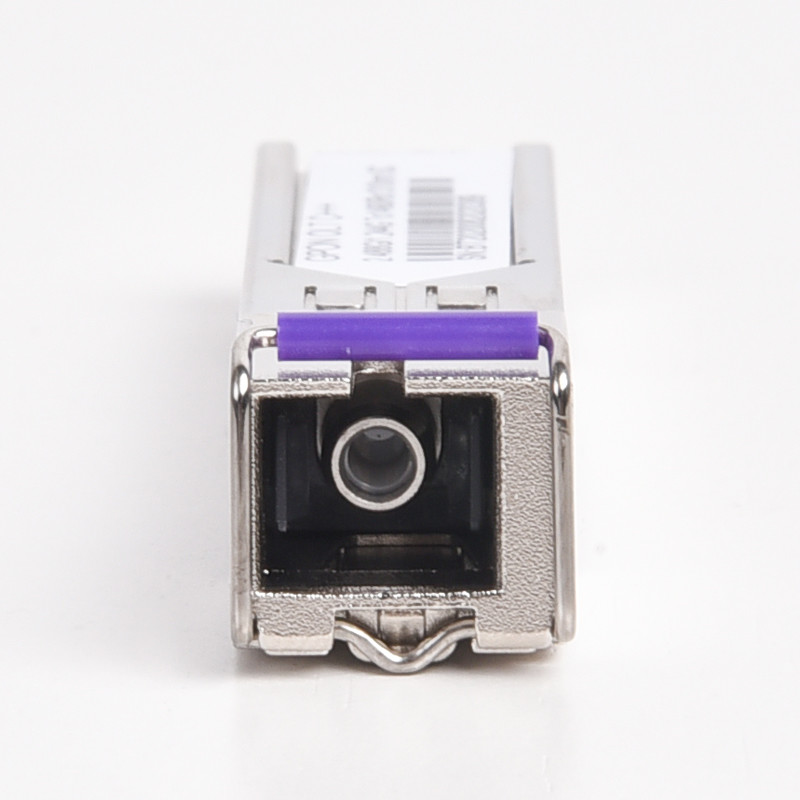

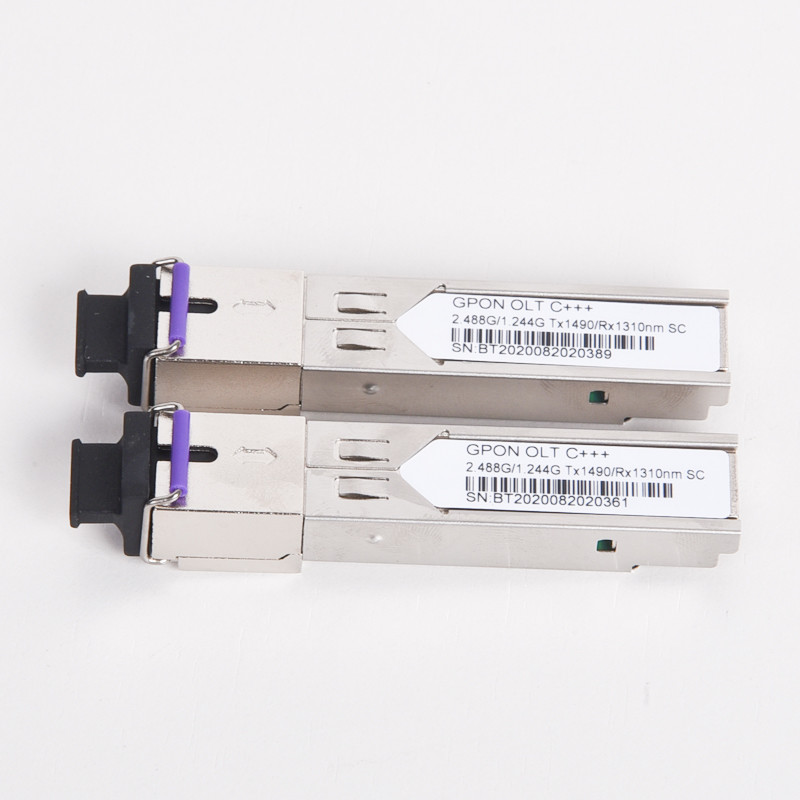

Transceiver SFP HUAWEI 100G SFP fiber Optical Transceiver 100G 10KM
Product Description:
SFP, short for Small Form-factor Pluggable, aka Mini-GBIC, is a
compact optical transceiver module used in optical communications.
The SFP transceiver modules are designed to support SONET/H, Fast
Ethernet, Gigabit Ethernet, Fibre Channel and other communications
standards.BT-PON manufactures and supplies a complete range of SFP
transceiver modules which can be Customized.
Features:
- Up to 1.25Gbps data link
- Integrated single fiber bi-direactional optical subassembly
- Hot- pluggable SFP footprint
- LC pluggable optical interface
- Low power dissipation
- Metal enclosure, for lower EMI
- RoHs compliant and lead-free
- Single +3.3V power supply
- Support Digital Diagnostic Monitoringinterface
- Compliant with SFF-8472
- Case operating temperature 0℃ to 70℃ or -40℃ to 85℃
The optical output can be disabled by a TTL logic high-level input
of Tx Disable,and the system also can disable the module via I2C.
Tx Fault is provided to indicatethat degradation of the laser. Loss
of signal (LOS) output is provided to indicate theloss of an input
optical signal of receiver or the link status with partner. The
systemcan also get the LOS (or Link)/Disable/Fault information via
I2C register access.
Notes:
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on T DIS >2.0V or open, enabled on T
DIS <0.8V.
3. Should be pulled up with 4.7k - 10kohms on host board to a
voltage between 2.0V and3.6V.
MOD_DEF(0) pulls line low to indicate module is plugged in.
4. This is an optional input used to control the receiver bandwidth
for compatibilitywith multiple data rates (most likely Fiber
Channel 1x and 2x Rates). If implemented,the input will be
internally pulled down with > 30kΩ resistor. The input states
are:
Low (0 – 0.8V): Reduced Bandwidth
(>0.8V, < 2.0V): Undefined
High (2.0 – 3.465V): Full Bandwidth
Open: Reduced Bandwidth
Product Parameter:
Material | Metal |
Color | Silver |
Data Rate | 10Gb/s |
Weight | 20g |
Fiber Interface | LC (SC/ST/FC optional) |
Fiber Type | Simplex, Duplex / Single Mode, Multi mode |
Distance | 300M,10KM, 20KM, 40KM, 80KM, 100KM,... |
Wavelength | 850nm, 1310nm, 1550nm |
Operating Temperature | 0-70℃ |
Ethernet Interface | one UTP RJ45 interface |
Applicable Optical Cable | 10G Ethernet 10G Fiber Channel Data Center Other Optical Links |
Note : This SFP module compatible with CISCO, HUAWEI, JUNIPER, ZTE,
D-LINK, HP,... |
