GPON EPON ONU WIFI 1GE 3FE 2 ANTENNAS FAMILY GATEWAY COMPATIBLE
HUAWEI FIBERHOME OLTS
Product Description:

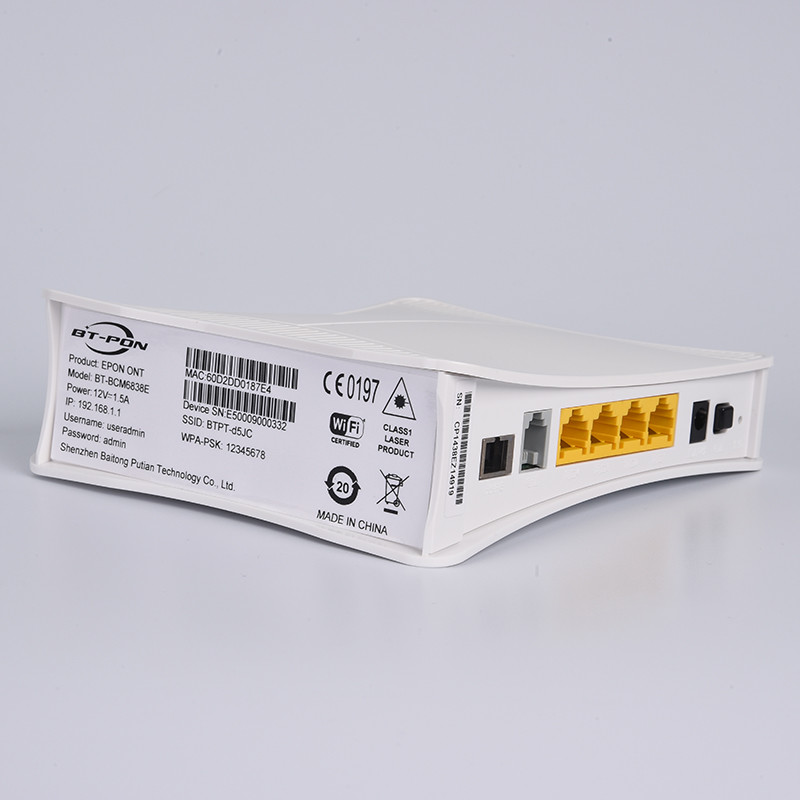

The WIFI FTTH EPON ONU MODEM is integrated with 1 Gigabit port
10/100/1000 M, 3 Fast ports 10/100 M with auto-negotiation,
two-antennas WIFI, mainly applied by telecommunication operators in
FTTH projects, have the characteristics of high integration,
flexible adaption, reliability and capable of providing QOS,
web-management as well as flexible enlarging capacity.
Features:
- Support Ethernet service layer 2 switching and wire-speed
forwarding of uplink and downlink services
- Support frame filtering and suppression
- Support standard 802.1Q Vlan function, support VLAN conversion
- Support 4094 VLANs (802.1Q)
- Support Dynamic Bandwidth Allocation (DBA) function
- Support QoS, including traffic flow classification, priority
marking, queue and dispatch, traffic shaping and traffic control,
etc
- Single ONU supports up to 1 LLID.
- Support IGMP Snooping
- Support router
- Support Ethernet port ratelimit loop detection
- Support power failure alarm
- Support lightning protection for power supply and lightning
protection for service port
Product Parameter:
| Hardware Specifications |
| Size(L*W*H) | 136mm (L) ×45mm (W) ×166mm (H) |
| Optical signal access | 1*GPON |
| User interface | BT-BCM6838G+:1GE+3FE+VOIP+WLAN+1USB BT-BCM6838G:4FE+VOIP+WLAN+1USB |
| Indicator light | POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/TEL/INTERNET/LOS/PON |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface |
| Module type | GPON Class B+ SC/PC |
| Working wavelength | up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | Up 1.244Gbps；down 2.488Gbps |
| Ethernet interface |
| Interface type | RJ45 |
| Interface parameters | 1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive
Ethernet interfaces |
| Wireless |
| Working mode | IEEE 802.11 b/g/n |
| Antenna pattern | 2*Built-in antenna |
| Antenna gain | 3dBi |
| Wireless bandwidth | Support 20MHz/40MHz |
| Interface rate | Maximum rate 300Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
| POTS interface |
| Interface type | 1* RJ11 |
| Voice agreement | SIP |
| Codecs | G.711/G.723/G.726/G.729 |
| Integrated circuit protocol | Gr-909 protocol is applicable |
