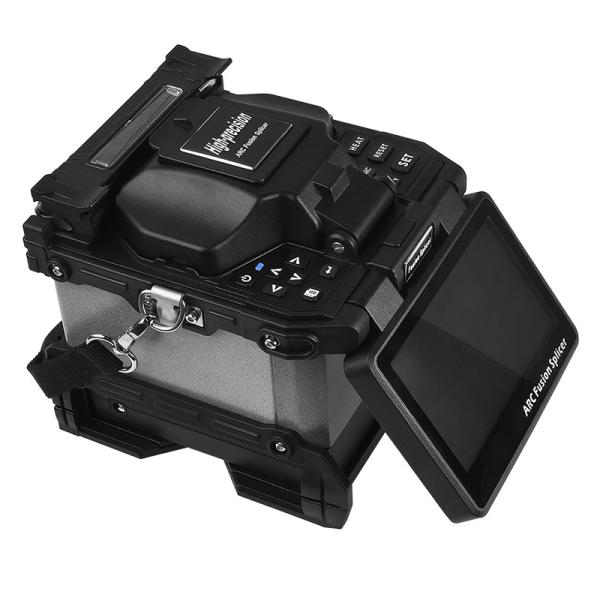

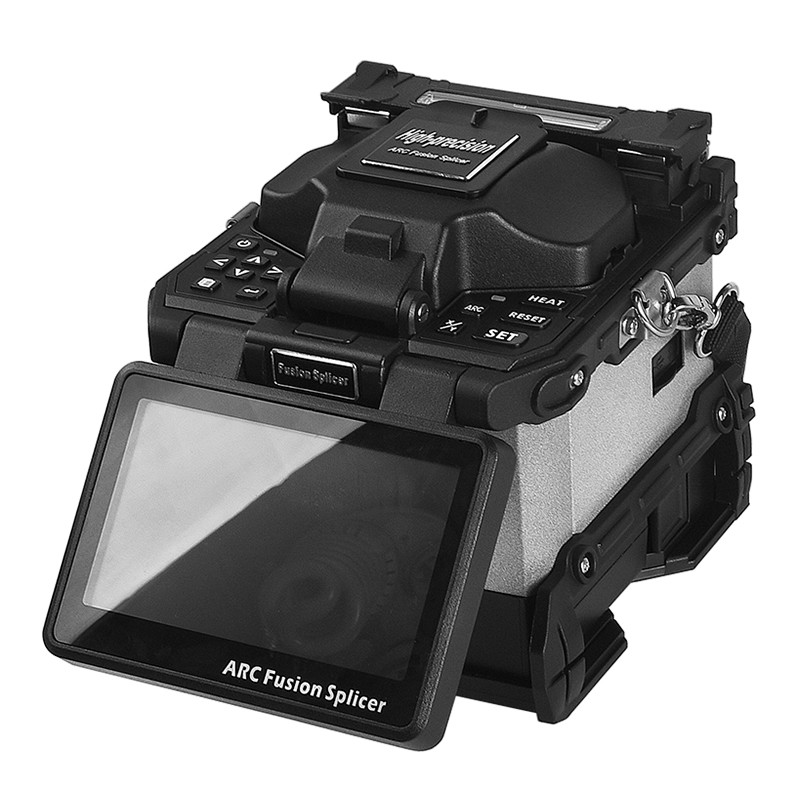

FAST SPLICING 6 LANGUAGES 230 TIMES SPLICING HIGH CAPACITY BATTERY
SIGNAL FIRE FTTH FUSION SPLICER MACHINE
Product Description:
New multi-functional fixture design, which can weld various optical
fibers without replacing the fixture Fully automatic, manual,and
semi-automatic functions are optional to improve engineering
efficiency. Innovative shockproof shell design, shockproof and drop
resistant.
Optical fiber fusion splicer is use for optical fiber cable
maintenance and relative operations. Thus it’s also called fiber
cable splicer. It’s a device that uses high precision propulsion
structure to push two fibers to get closer to each other and uses
an electric arc to melt two optical fibers together at their end
faces, to form a single long fiber.
Optical fiber fusion splicers are mainly applied by: Telecom
carriers,ISP,network project contractors,laboratories. And they’re
applied in: Fiber cable network maintenance, telecom projects,
emergent repairing, optical experiments, manufacture and testing og
optical devices, academic researches in collages.
Features:
- 5 seconds fast splicing
- 15 seconds fast heating
- Waterproof, dust proof, shock-resistant
- 21 patent results
- Lifetime free warranty
- Six motors
- Core alignment
- 10 languages to switch freely
- Industrial quad-core chip CPU
Product Parameter:
| Model | Fusion Splicer |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8~16mm |
| Fiber Image/ Magnification | 300/200 |
| View Display | 5 inch digital high-quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity | 200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: A C100-240V, output: DC13.5V/4.5A |
Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
| Weight (including battery) | 2.1 KG (including battery) |
| Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |
FAQ:
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next
order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special
offer and technical support from them. Each model has S/N number
and we will send you the S/N list to you after shipping .You can
confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if
you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make
proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship
forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the
custom.
5.How about the shipping?
For small orders, we will send the goods by International Express
like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays
to arrive.If big quantity we will ship by Ocean transportation, it
takes one month to arrive. if urgnet, you can select shipping by
Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after-sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
