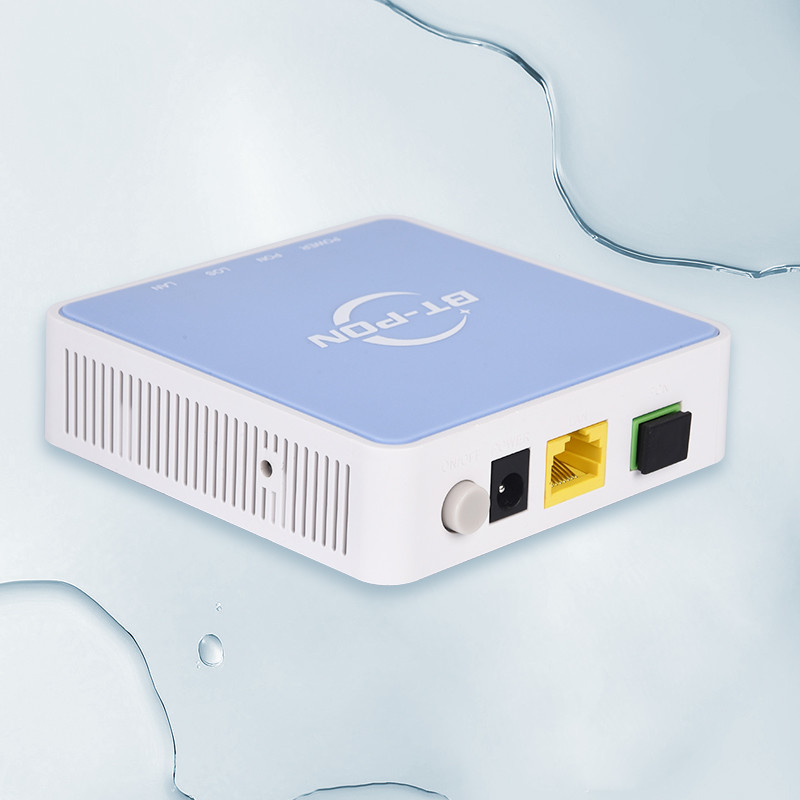

EPON ONU Fiber Optical Network Unit GEPON ONU 1GE similar to
HG8010H
Product Description:
BT-121 model ONU products fully comply with IEEE 802.3-2005 and the
China Telecom EPON device technical specification (V2.1). It is
operative, manageable and maintainable at telecommunication level,
and can provide high speed data service for customers. It has a PON
uplink port that connects to office end apparatus through optical
fiber.
it is designed for meeting the triple-play service needs of fixed
network operators or cable operators, and widely used in FTTx,
video surveillance and other requirements. It is based on mature
GPON and EPON technology, and has high ratio of performance to
price, stable, cost-effective, high reliability, easy management,
configuration flexibility and good quality of service (QoS)
guarantees. It is fully compliant with GPON and EPON technical
regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can
be used as GPON or EPON.
Features:
- Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route
mode, etc
- Support multicast IGMP snooping
- Supports the L2 wire speed forwarding
- Supports the AES-128 algorithm for data encryption of downlink data
- WAN connections support Route and Bridge mode
- Route mode supports PPPoE/DHCP/ static IP
- Support QoS and DBA
- Support port Isolation and port vlan configuration
- Supports the configuration of Ethernet interface rates, working
modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
- Provides performance statistics on all Ethernet lines
- GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x
standard
- GPON:8 T-CONTs,32 GEM Ports
- EPON working mode compliant with IEEE 802.3ah specification and OAM
protocol
- Supports the WEB configuration function
- Support SFU and HGU types, can switch to use each other
- HGU type,Support PPPoE/ Static IP/ DHCP
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth
Control, Spanning Tree, etc
Product Parameter:
| Hardware Specifications |
| Size(L*W*H) | 90mm (L) ×90mm (W) ×24mm (H) |
| Optical signal access | EPON/GPON |
| User interface | 1GE |
| Indicator light | POWER/PON/LOS/LAN |
| Button | Power switch Button, Reset Button |
| Weight | 95g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,0.5A |
| Power consumption | <6w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface |
| Module type | SC/UPC |
| Working wavelength | up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | GPON:Uplink 1.244Gbps；downlink 2.488Gbps EPON:Uplink 1.244Gbps；downlink 1.244Gbps |
| Ethernet interface |
| Interface type | RJ45 |
| Interface parameters | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces |
FAQ:
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next
order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special
offer and technical support from them. Each model has S/N number
and we will send you the S/N list to you after shipping .You can
confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if
you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make
proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship
forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the
custom.
5.How about the shipping?
For small orders, we will send the goods by International Express
like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays
to arrive.If big quantity we will ship by Ocean transportation, it
takes one month to arrive. if urgnet, you can select shipping by
Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after-sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
